Razor Wire/Razor Barbed Wire/Galvanized Razor Wire Factory
| Blade Type | Thickness | Wire Dia | Barb Length | Barb Width | Barb Space |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 25±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 25±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 35±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 36±1 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 46±1 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 46±1 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 101± |
| Outside Diameter | No. of Loops | Standard Length Per Coil | Type | Notes | |||
| 450mm | 33 | 8m | CBT-65 | Single Coil | |||
| 500mm | 41 | 10m | CBT-65 | Single Coil | |||
| 700mm | 41 | 10m | CBT-65 | Single Coil | |||
| 960mm | 53 | 13m | CBT-65 | Single Coil | |||
| 500mm | 102 | 16m | BTO-10.15.22 | Cross Type | |||
| 600mm | 86 | 14m | BTO-10.15.22 | Cross Type | |||
| 700mm | 72 | 12m | BTO-10.15.22 | Cross Type | |||
| 800mm | 64 | 10m | BTO-10.15.22 | Cross Type | |||
| 960mm | 52 | 9m | BTO-10.15.22 | Cross Type | |||

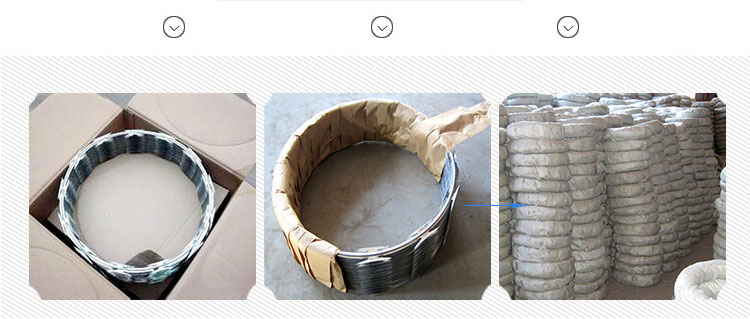

Product Packing

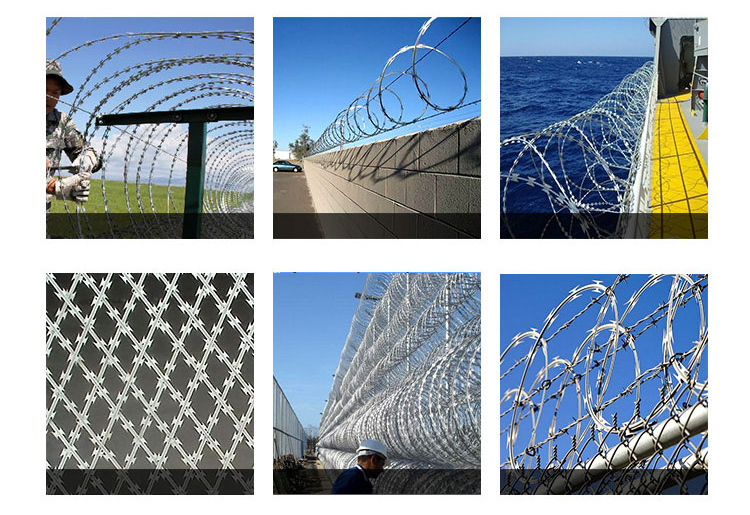

Product Use
Factory Show
