Product Details
| Galvanized Hex. Wire Netting In Normal Twist(In 30m roll,width of 0.5m—2.0m) | ||
| Mesh | Wire Gauge (BWG) | |
| Inch | mm | |
| 3/8″ | 10mm | 27,26,25,24,23,22,21 |
| 1/2″ | 13mm | 25,24,23,22,21,20 |
| 5/8″ | 16mm | 27,26,25,24,23,22 |
| 3/4″ | 20mm | 25,24,23,22,21,20,19 |
| 1″ | 25mm | 25,24,23,22,21,20,19,18 |
| 1-1/4″ | 32mm | 22,21,20,19,18 |
| 1-1/2″ | 40mm | 22,21,20,19,18,17 |
| 2″ | 50mm | 22,21,20,19,18,17,16,15,14 |
| 3″ | 75mm | 21,20,19,18,17,16,15,14 |
| 4″ | 100mm | 17,16,15,14 |
| Galvanized Hex. Wire Netting In Reverse Twist(In 30m roll, width of 0.5m—2.0m) | |||||||
| Mesh | Wire Gauge | Reinforcement | |||||
| Inch | mm | BWG | Widths (ft) | Strand | |||
| 1″ | 25mm | 22,21,20,18 | 2′ | 1 | |||
| 1-1/4″ | 32mm | 22,21,20,18 | 3′ | 2 | |||
| 1-1/2″ | 40mm | 20,19,18 | 4′ | 3 | |||
| 2″ | 50mm | 20,19,18 | 5′ | 4 | |||
| 3″ | 75mm | 20,19,18 | 6′ | 5 | |||
| Mesh | Wire Gauge | ||||||
| Inch | mm | ||||||
| 1/2″ | 13mm | 0.9mm,1.0mm | |||||
| 1″ | 25mm | 1.0mm,1.2mm,1.4mm | |||||
| 1-1/2″ | 40mm | 1.0mm,1.2mm,1.4mm,1.6mm | |||||
| 2″ | 50mm | 1.0mm,1.2mm,1.4mm,1.6mm | |||||

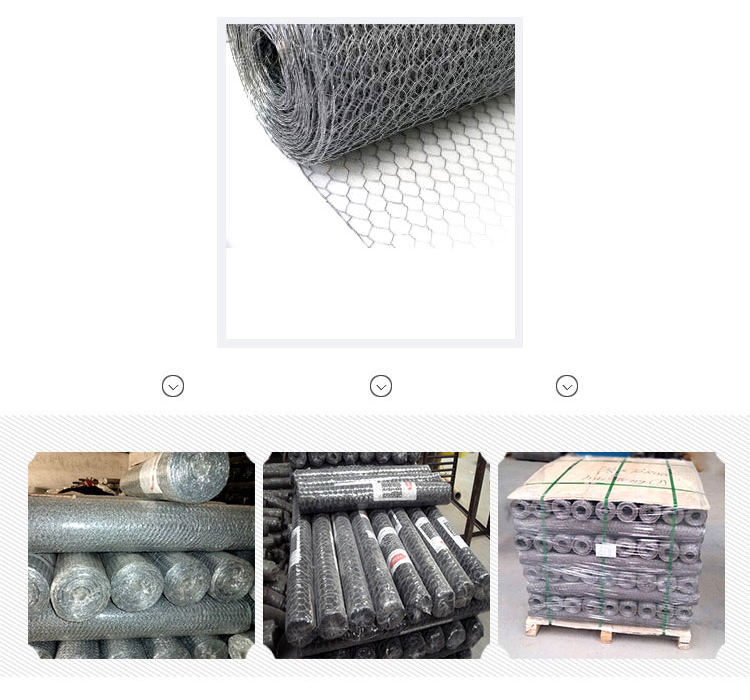

Product Packing

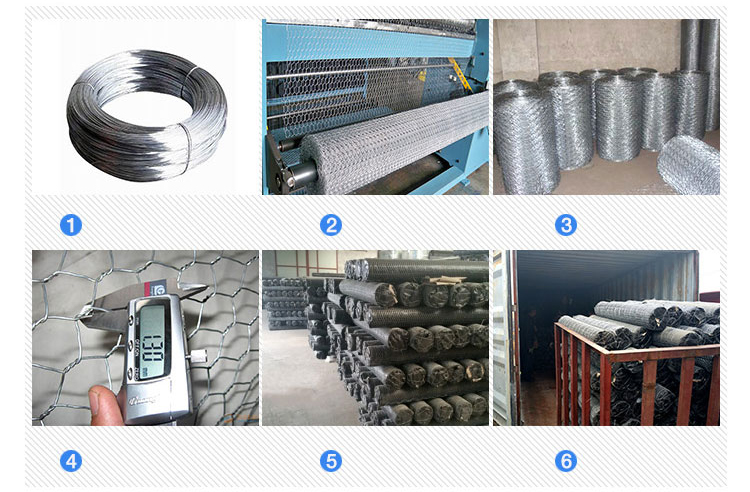

Production Process

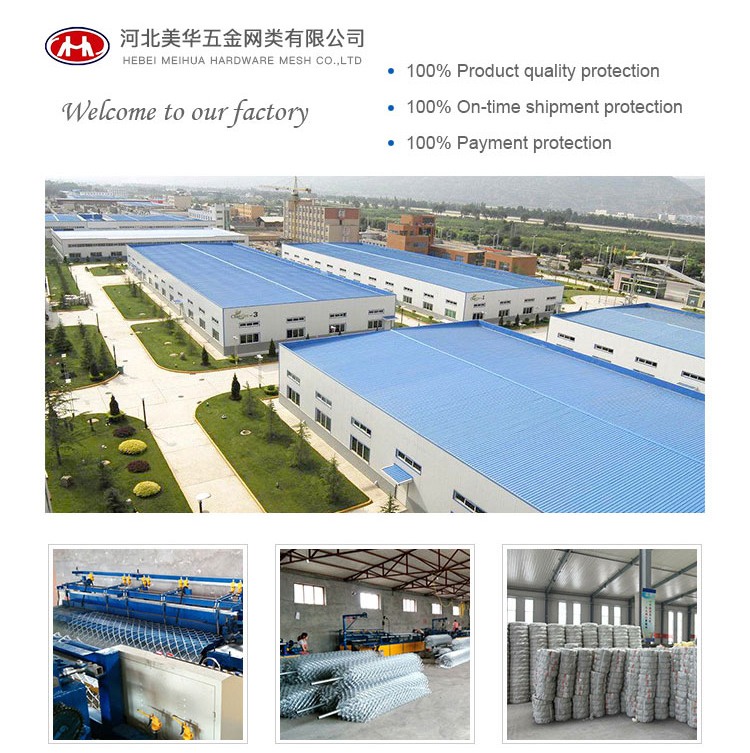

Factory Show
Our Certificate
